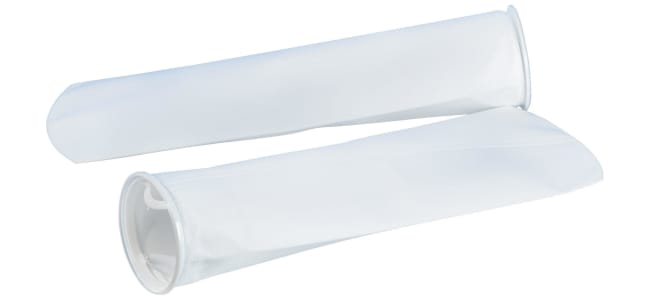

Filterpose PO-100-P02E-A-30L

GENERAL SPECIFICATIONS

PRODUCT NAME: Eaton SENTINEL Filter Bag

PRODUCT LENGTH/DEPTH: 810 mm

PRODUCT DIAMETER: 180 mm

PRODUCT WEIGHT: 0.17 kg

CERTIFICATIONS: ISO 9001

PRODUCT SPECIFICATIONS

FILTER BAG SIZE: Size 02: Dia 180 x L 810 mm

CAPACITY TYPE: Standard

FILTER MATERIAL TYPE: Polypropylene

DIFFERENTIAL PRESSURE - MAX: 2.5 bar

CONSTRUCTION TYPE: Welded

COVER LAYER MATERIAL: Plain

RING TYPE: Polypropylene SENTINEL ring

FILTER AREA: 0.48 m²

FLOW RATE - MAX: 40 m³/h

RETENTION TYPE: Nominal

RETENTION RATING: 100 µm

OPERATING TEMPERATURE - MAX: 90 °C

PACKAGING: 1 bag (1 box= 30 bags)

FILTER MEDIA TYPE: Needlefelt
