Filterpose NMO-80-P04S-50-S

GENERAL SPECIFICATIONS

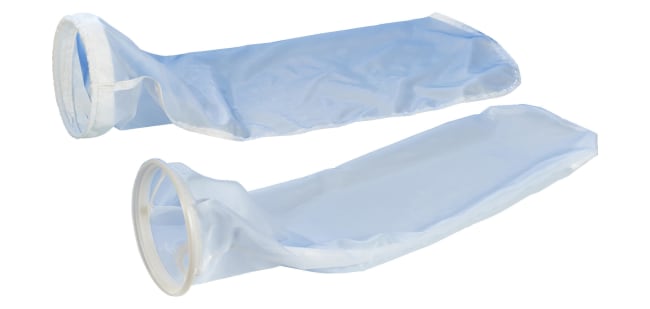

PRODUCT NAME: Eaton Monofilament Filter Bag

PRODUCT LENGTH/DEPTH: 380 mm

PRODUCT DIAMETER: 100 mm

PRODUCT WEIGHT: 0.03 kg

CERTIFICATIONS: ISO 9001 | Kosher | Halal

PRODUCT SPECIFICATIONS

FILTER BAG SIZE: Size 04: Dia 100 x L 380 mm

CAPACITY TYPE: Standard

FILTER MATERIAL TYPE: Nylon

DIFFERENTIAL PRESSURE - MAX: 2.5 bar

CONSTRUCTION TYPE: Welded

COVER LAYER MATERIAL: Plain

RING TYPE: Welded polypropylene SENTINEL seal ring

FILTER AREA: 0.16 m²

FLOW RATE - MAX: 12 m³/h

RETENTION TYPE: Nominal

RETENTION RATING: 80.0 µm

OPERATING TEMPERATURE - MAX: 190 °C

PACKAGING: 1 bag (1 box= 50 bags)

FILTER MEDIA TYPE: Mesh
